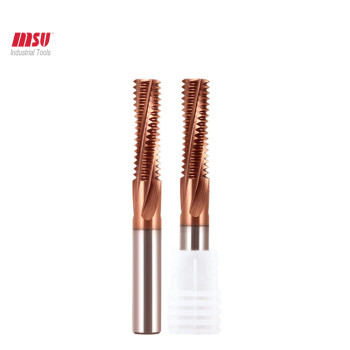

MSU Solid carbide thread mills M3 M4 M5 M6

MSU Solid carbide thread mills M3 M4 M5 M6
MSU Solid carbide thread mills M3 M4 M5 M6MSU Solid carbide thread mills M3 M4 M5 M6MSU Solid carbide thread mills M3 M4 M5 M6MSU Solid carbide thread mills M3 M4 M5 M6MSU Solid carbide thread mills M3 M4 M5 M6
group name
Threading Mill
Min Order
1 piece
brand name
MSUTOOLS
model
D1mm-20mm
Nearest port for product export
Any ports of China
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW
Acceptable payment methods
T/T, L/C, Credit Card, PayPal, Westem Union
update time
Sat, 07 Aug 2021 12:53:04 GMT
contact supplier

Paramtents

  • Material Solid Carbide

  • Internal Cooling Without

  • Pitch 4 Pitch

  • Type Threading

  • Coating TiSin

  • Helix Angle 35°

  • Precision ±0.01

  • Workpiece Steel/ Alloy Steel/ Cast Iron

  • Application Milling

  • Full Length 50mm/75mm/100mm/150mm

Packging & Delivery

  • Min Order1 piece

Briefing

MSU Thread Milling Cutter End Mills (Corner Radius) TiSin Coating Carbide HRC58 Super Wear Resistance Long working Life

Detailed

About Products
About MSU Company
MSU Carbide Threading Mill
Description
MSU HRC58 Tungsten Steel Thread Milling Cutters
Hardness
HRC58
Coating
TiSin Coating
Helix Angle
35°
Workpiece
Steel/Cast Iron
Application

THREAD MILLS FOR EXTERNAL THREADS


Features

We offer a wide range of solid carbide mill threading tools, designed for an extensive array of applications. We can accommodate every need: from basic, cost-effective solutions, to the most demanding applications.

Features:

  • The thread is generated in a single pass
  • Spiral flutes allow for smooth cutting action
  • The smallest possible cutting diameter is only 2.2 mm large
  • Capable of threading up to shoulder in blind hole operations
  • Same tool can be used for a variety of materials
  • Superb quality surface finish
  • Low cutting pressure allows for thin-wall machining
  • Same tool can be used for both Right-hand and Left-hand threads
MSU Introduction and Factory photos
MSU Provide  full-service manufacturing.We produce custom  cutters, as well as industry standard cutting tools. Additionally, we provide regrinding and sharpening services for your endmills and high performance drills. Examples of cutters we produce include high performance endmills, dovetails, bullnose mills, custom tapered endmills, corner rounders and chamfering cutters.We verify our cutting tools on our Zoller Genius 3.Our 5-Axis cutter grinding capabilities, as well as precision computerized inspection provides our customers with the competitive edge in milling and drilling.Razor Mill is proudly owned and operated in the China and located in Zhuzhou City of Hunan Province.
