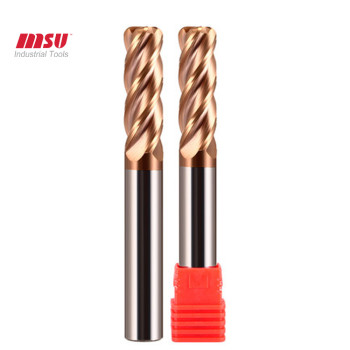

HRC58 Extra Long Carbide Carbide Bull Nose End Mill
- group name
- Corner Radius End Mills
- Min Order
- 1 piece
- brand name
- MSUTOOLS
- model
- D1mm-20mm
- Nearest port for product export
- Any ports of China
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, Credit Card, PayPal, Westem Union
- update time
- Wed, 23 Feb 2022 15:15:59 GMT
Paramtents
Material Solid Carbide
Internal Cooling Without
No of Cutting Flute 4 Flutes
Type Corner Radius
Coating TiSin
Cutting Direction Right - Hand
Helix Angle 38°
Precision ±0.01
Workpiece Steel/ Alloy Steel/ Cast Iron
Application Milling
Cutting Diameter 4mm - 20mm
Full Length 50mm/75mm/100mm/150mm
Packging & Delivery
-
Min Order1 piece
Briefing
MSU Bull Nose End Mills (Corner Radius) Carbide HRC58 Super Wear Resistance Long working Life
Detailed
MSU Carbide Corner Radius End Mill
|
Description
|
MSU Bull Nose End Mills (Corner Radius) Carbide HRC55 TiSin Coating
|
||
|
Hardness
|
HRC58
|
||
|
Coating
|
TiSin Coating
|
||
|
Helix Angle
|
38°
|
||
Workpiece | Steel/Cast Iron | ||
Application | Side Milling and Face Milling/Slotting | ||
Corner radius end mills or bull end mills are single-ended cutting tools used for making a specific corner radius to a workpiece or to remove a sharp edge or burr in a finishing operation. They are less prone to chipping and generally have a longer tool life. Bull end mills are usually made from carbide steel and are available in various flute counts and helix angle configurations. All End Mills are made by 5 Axis CNC machines such as ANCA/Walter, the end mills come to be high precision, long working life, high efficiency. | |||
