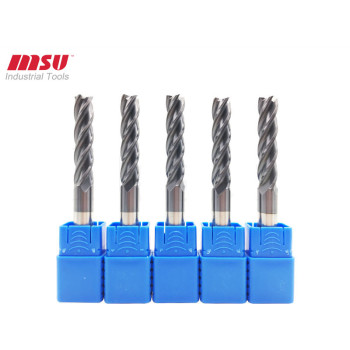

HRC45- 4 Flute Square Carbide End Mill
- group name
- Flat End Mills
- Min Order
- 1 piece
- brand name
- MSUTOOLS
- model
- D1mm-20mm
- Nearest port for product export
- Any ports of China
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, Credit Card, PayPal, Westem Union
- update time
- Wed, 23 Feb 2022 14:44:32 GMT
Paramtents
Material Solid Carbide
Internal Cooling Without
No of Cutting Flute 4 Flute
Type Flattened
Coating TiAIN/Altin
Cutting Direction Right - Hand
Helix Angle 35°
Precision ±0.01
Workpiece Carbon Steel/ Alloy Steel/Grey Cast Iron
Application Milling
Cutting Diameter 1mm-20mm
Full Length 50mm/75mm/100mm/150mm
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
|
Description
|
Square End Mills Carbide 4 Flute China CNC End Mill Cutters Manufacturer
|
||
|
Hardness
|
HRC45 (HRC55/60/65 Available)
|
||
|
Coating
|
AlTiN,TiAlN,TiSiN,TiN,DLC,NANO
|
||
|
Helix Angle
|
10°/15°/35°/38°/42°/45°
|
||
Workpiece | Carbon Steel/ Alloy Steel/Grey Cast Iron/ Nodular Cast Iron | ||
Application | Side Face/ Step Shoulder/ Straight Slot /Deep Slot | ||
1. Premium carbide grade for making carbide endmill cutters. 2. Cutting edge over center, easy chip removal, no built-edge. 3. AlTiN Coating, super wear resistance and heat resistance. 4. Chamfer Shank, easy operation, high precision, end mill no vibration. All End Mills are made by 5 Axis CNC machines such as ANCA/Walter, the end mills come to be high precision, long working life, high efficiency. | |||
Advanced CNC grinding machines
With 5-Axis automatic CNC grinding machines from abroad
4 Michael Deckel from Germany
3 ANCA from Australia
1 TTB from Australia
Top Work from Taiwan
Guarantee high precision and good performance.
Strict Quality Checking
Check each piece.Guarantee the tolerance -0.02mm
Exact helix angle and finished surface
Goods pass SGS and ISO9001
Exellent Service
Welcome to be our agents, OEM is also available
Customized: It's available according to your drawings or samples
